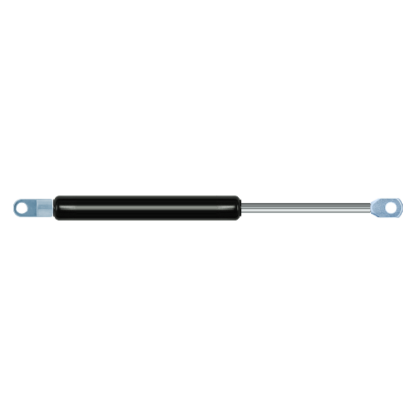

Replacement for Bansbach A1N1-50-100-285–0XX 50-800N

$36.14



Replacement gas spring for the Bansbach A1N1-50-100-285--0XX 50-800 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 5mm instead of 10mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

View this gas spring in our configurator.

Force

Choose an option50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.460 Newton | 103.4 lbs.480 Newton | 107.9 lbs.500 Newton | 112.4 lbs.520 Newton | 116.9 lbs.540 Newton | 121.4 lbs.550 Newton | 123.6 lbs.560 Newton | 125.9 lbs.580 Newton | 130.4 lbs.600 Newton | 134.9 lbs.620 Newton | 139.4 lbs.640 Newton | 143.9 lbs.650 Newton | 146.1 lbs.660 Newton | 148.4 lbs.680 Newton | 152.9 lbs.700 Newton | 157.4 lbs.720 Newton | 161.9 lbs.740 Newton | 166.4 lbs.750 Newton | 168.6 lbs.760 Newton | 170.9 lbs.780 Newton | 175.4 lbs.800 Newton | 179.8 lbs.Clear

Replacement for Bansbach A1N1-50-100-285--0XX 50-800N quantity

Add to basket

This gas spring is also known as Winco Easylift A1N1-50-100-285, A1N1 F50-100-285.



The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement is exactly 285 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. The force of this replacement is 50-800 Newton. Attention: this is not an official Bansbach gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
