$30.32

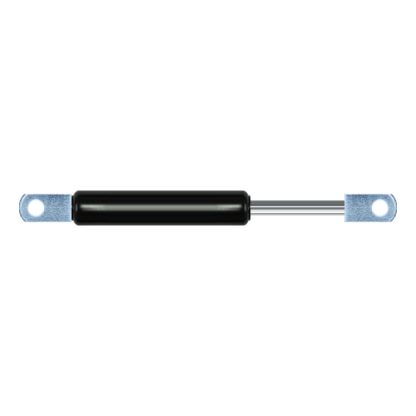

Replacement gas spring for the Bansbach A1J2-40-50-184--0XX 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.
View this gas spring in our configurator.

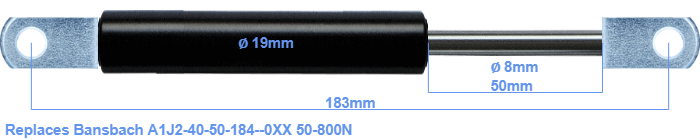

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 50 millimeter. The total length of this replacement is 183 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 145 mm. This replacement gas spring has a force of 50-800 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
