Replacement for Bansbach A1J2-40-250-584–0XX 50-800N

$43.69



Out of Stock until approximately 12/3/2024

Replacement gas spring for the Bansbach A1J2-40-250-584--0XX 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

View this gas spring in our configurator.

Force

Choose an option50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.460 Newton | 103.4 lbs.480 Newton | 107.9 lbs.500 Newton | 112.4 lbs.520 Newton | 116.9 lbs.540 Newton | 121.4 lbs.550 Newton | 123.6 lbs.560 Newton | 125.9 lbs.580 Newton | 130.4 lbs.600 Newton | 134.9 lbs.620 Newton | 139.4 lbs.640 Newton | 143.9 lbs.650 Newton | 146.1 lbs.660 Newton | 148.4 lbs.680 Newton | 152.9 lbs.700 Newton | 157.4 lbs.720 Newton | 161.9 lbs.740 Newton | 166.4 lbs.750 Newton | 168.6 lbs.760 Newton | 170.9 lbs.780 Newton | 175.4 lbs.800 Newton | 179.8 lbs.Clear

Replacement for Bansbach A1J2-40-250-584--0XX 50-800N quantity

Add to basket

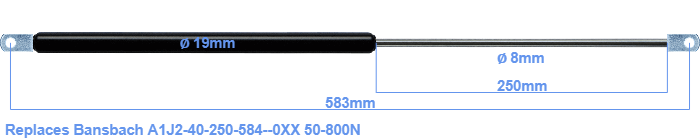

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 250 mm. In total, the length is 583 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. This replacement gas spring (A1J2-40-250-584--0XX) has a force of 50-800 Newton (N). This is not an official Bansbach gas spring, but a so called replacement. This a gas spring with the brand HAHN. The force (50-800 N) and dimensions are almost entirely identical to the original.
