$45.06

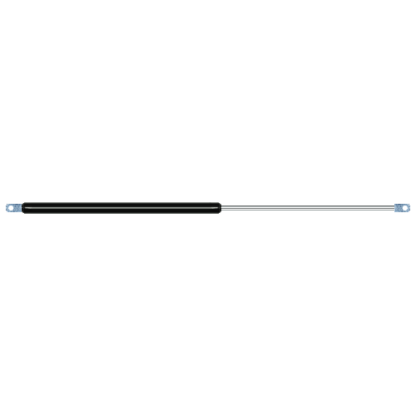

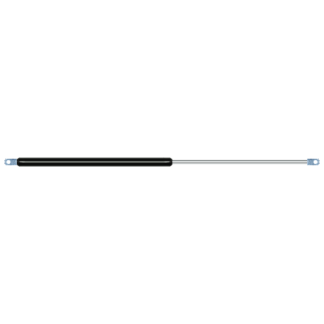

Replacement gas spring for the Bansbach A1A1-40-300-684--0XX 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator.

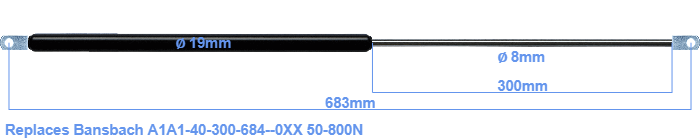

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The rod (the chrome part) is 300 mm long. The total length of this replacement gas spring is 683 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement is 50-800 Newton. Attention: this is not an official Bansbach gas spring, but a replacement gas spring. This is a HAHN gas spring. The force (50-800 N) and dimensions are identical to the original.
