$49.51



Out of Stock until approximately 11/22/2024.

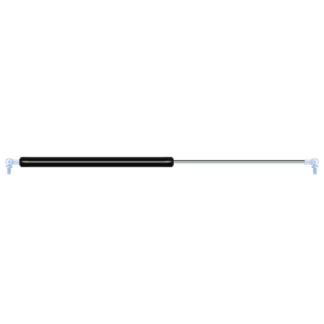

Replacement gas spring for the AVM SE850V130PS90 580 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

AVM SE850V130PS90
WG20
elbow ball removal

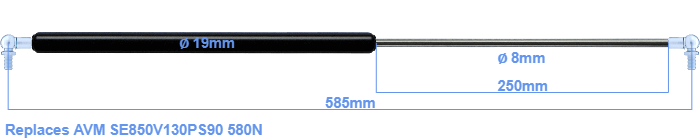

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement gas spring is 585 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement is 580 Newton. This is not an original gas spring from AVM, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions equal.
