Replacement for AVM SE850V050PS90 220N

$49.51



Out of Stock until approximately 12/3/2024

Replacement gas spring for the AVM SE850V050PS90 220 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for AVM SE850V050PS90 220N quantity

Add to basket

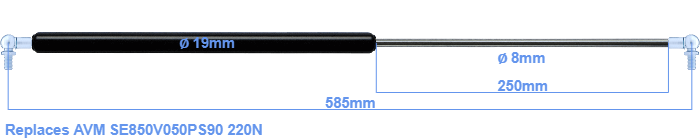

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement gas spring is 585 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. This replacement gas spring has a force of 220 Newton. This is not an original gas spring from AVM, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
