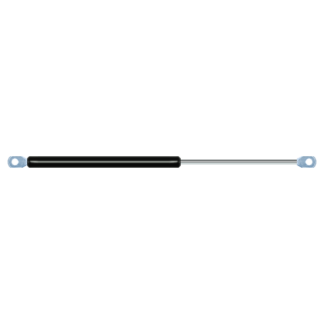

Replacement for AVM SE550A065PS122 290N

$34.55



Replacement gas spring for the AVM SE550A065PS122 290 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for AVM SE550A065PS122 290N quantity

Add to basket

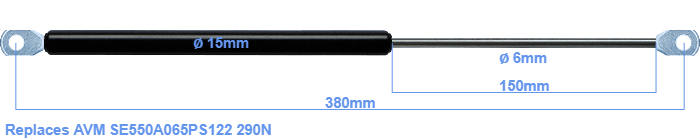

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke of the gas spring is 150 millimeter. The total length of this replacement is exactly 380 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 348 mm. The force of this replacement is 290 Newton. This is not an original gas spring produced by AVM, but it can replace a AVM gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are equal.
