Replacement for APSOvib 12.2174.2010 100N

$45.89



Replacement gas spring for the APSOvib 12.2174.2010 100 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for APSOvib 12.2174.2010 100N quantity

Add to basket

This gas spring is also known as AP12.2174.2010.

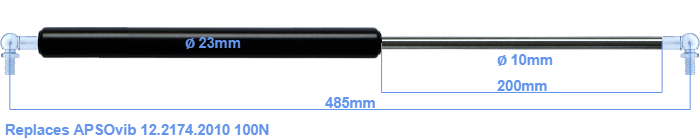

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The stroke is 200 millimeter long. The total length of this replacement is 485 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 445 mm. This replacement gas spring (12.2174.2010) has a force of 100 Newton (N). This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
