$36.79




Replacement gas spring for the APSOvib 12.2171.4035 350 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as AP12.2171.4035.
APSOvib 12.2171.4035
WX22
elbow ball removal

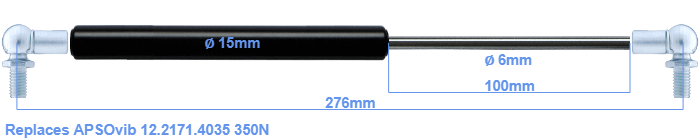

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement is 276 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 232 millimeter. This replacement gas spring (12.2171.4035) has a force of 350 Newton (N). This is not an original gas spring from APSOvib, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are equal.
