$56.03
Replacement gas spring for the APSOvib 12.2166.3165 1650 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.
Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2166.3165.

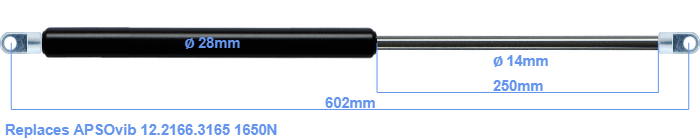

The bore of the house of this replacement gas spring is 28 mm. The rod has a diameter of 14 mm. The stroke (the retracting part) has a length of 250 mm. In total, the length is 602 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 548 mm. The force of this replacement is 1650 Newton. This is not an official APSOvib gas spring, but a so called replacement. This is a HAHN gas spring. The force (1650 N) and dimensions are almost identical to the original.
