$56.03
Replacement gas spring for the APSOvib 12.2166.3150 1500 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.
Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2166.3150.

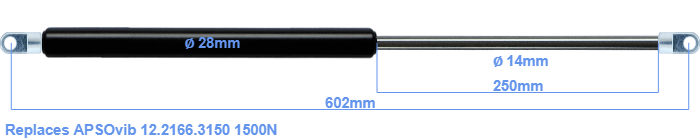

The diameter of the cylinder of this gas spring is 28 millimeters. The diameter of the rod totals 14 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is exactly 602 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 548 mm long (thread to thread). This gas spring (12.2166.3150) has a force of 1500 Newton. This is not an official APSOvib gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions close to equal.
