Replacement for APSOvib 12.2166.1120 1200N

$46.36



Replacement gas spring for the APSOvib 12.2166.1120 1200 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.

View this gas spring in our configurator.

Replacement for APSOvib 12.2166.1120 1200N quantity

Add to basket

This gas spring is also known as AP12.2166.1120.

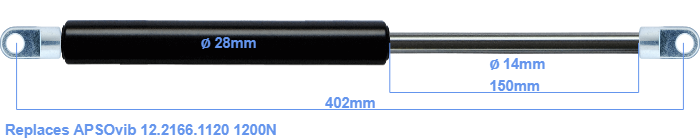

This gas spring has a cylinder diameter of 28 mm. The diameter of the rod totals 14 mm. The stroke is 150 millimeter long. In total, the length is 402 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 348 mm long (thread to thread). This gas spring (12.2166.1120) has a force of 1200 Newton. This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
