Replacement for APSOvib 12.2166.1085 850N

$46.36



Replacement gas spring for the APSOvib 12.2166.1085 850 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.

View this gas spring in our configurator.

Replacement for APSOvib 12.2166.1085 850N quantity

Add to basket

This gas spring is also known as AP12.2166.1085.

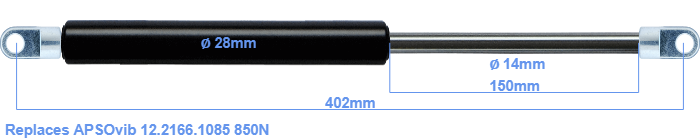

The diameter of the cylinder of this gas spring is 28 millimeters. The diameter of the rod is 14 millimeter. The stroke of the gas spring is 150 millimeter. The total length of this replacement is exactly 402 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 348 mm. This gas spring (12.2166.1085) has a force of 850 Newton. This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions almost equal.
