$43.80



Out of Stock until approximately 11/22/2024.


Replacement gas spring for the APSOvib 12.2162.9070 700 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.
This gas spring is also known as AP12.2162.9070.
APSOvib 12.2162.9070
AS24AR19

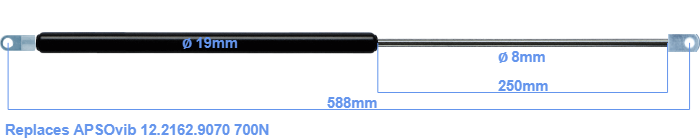

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The rod (the chrome part) is 250 mm long. The total length of this gas strut is 588 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. The force of this replacement is 700 Newton. This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
