Replacement for Airax Rayflex 6858864204001 400N

$32.83



Replacement gas spring for the Airax Rayflex 6858864204001 400 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858864204001 400N quantity

Add to basket

This gas spring is also known as 588642 400N, 50006858864204001, 6858864204001.00.

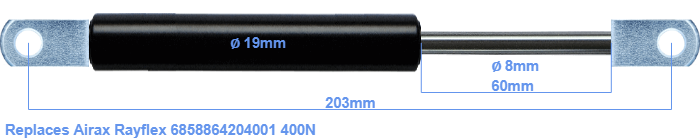

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The stroke is 60 millimeter long. The total length of this replacement gas spring is 203 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 165 mm. This replacement gas spring has a force of 400 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This replacement gas spring is a HAHN gas spring. The force (400 N) and dimensions are almost identical to the original.
