Replacement for Airax Rayflex 6858863906001 600N

$35.92



Replacement gas spring for the Airax Rayflex 6858863906001 600 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858863906001 600N quantity

Add to basket

This gas spring is also known as 588639 600N, 50006858863906001, 6858863906001.00.

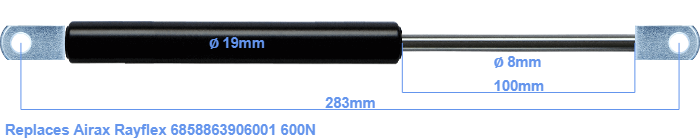

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 100 mm. In total, the length is 283 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 245 mm. The force of this replacement gas spring is 600 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are nearly equal.
