Replacement for Airax Rayflex 6858862503001 300N

$43.69



Out of Stock until approximately 11/22/2024.

Replacement gas spring for the Airax Rayflex 6858862503001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858862503001 300N quantity

Add to basket

This gas spring is also known as 588625 300N, 50006858862503001, 6858862503001.00.

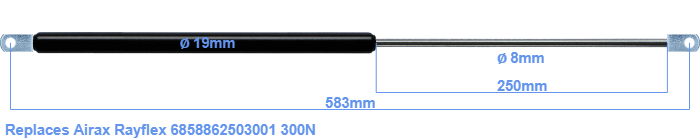

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The rod (the chrome part) is 250 mm long. In total, the length is 583 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. The force of this replacement gas spring is 300 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
