Replacement for Airax Rayflex 6858861406001 600N

$56.03



Out of Stock until approximately 11/29/2024.

Replacement gas spring for the Airax Rayflex 6858861406001 600 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858861406001 600N quantity

Add to basket

This gas spring is also known as 588614 600N, 50006858861406001, 6858861406001.00.

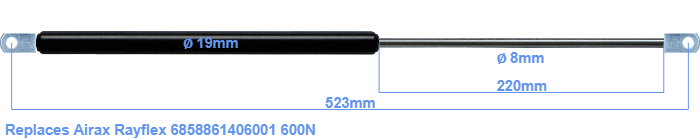

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 220 mm long. The total length of this replacement is 523 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. This gas spring (6858861406001) has a force of 600 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
