Replacement for Airax Rayflex 6858861405501 550N

$56.03



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Airax Rayflex 6858861405501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858861405501 550N quantity

Add to basket

This gas spring is also known as 588614 550N, 50006858861405501, 6858861405501.00.

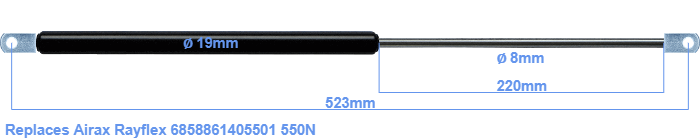

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The rod (the chrome part) is 220 mm long. The total length of this replacement gas spring is 523 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 485 mm. The force of this replacement is 550 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
