Replacement for Airax Rayflex 6858860201501 150N

$40.97



Replacement gas spring for the Airax Rayflex 6858860201501 150 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858860201501 150N quantity

Add to basket

This gas spring is also known as 588602 150N, 50006858860201501, 685886021501.00, 6858860201501.00.

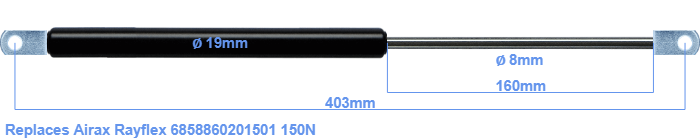

This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 160 mm. The total length of this replacement is exactly 403 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 365 mm long (thread to thread). The force of this replacement gas spring is 150 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
