Replacement for Airax Rayflex 6858859103001 300N

$36.77



Replacement gas spring for the Airax Rayflex 6858859103001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858859103001 300N quantity

Add to basket

This gas spring is also known as 588591 300N, 50006858859103001, 6858859103001.00.

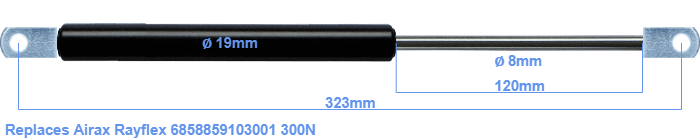

The diameter of the cylinder of this gas spring is 19 millimeters. The cross section of the rod is 8 mm. The stroke is 120 millimeter long. In total, the length is 323 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 285 mm. This gas spring (6858859103001) has a force of 300 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
