Replacement for Airax Rayflex 6858853905501 550N

$43.69



Out of Stock until approximately 11/22/2024.

Replacement gas spring for the Airax Rayflex 6858853905501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858853905501 550N quantity

Add to basket

This gas spring is also known as 588539 550N, 50006858853905501, 6858853905501.00.

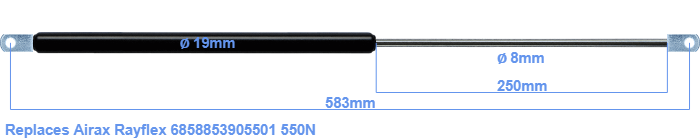

The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke is 250 millimeter long. The total length of this replacement gas spring is 583 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 550 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The force (550 N) and dimensions are close to identical to the original.
