Replacement for Airax Rayflex 6858853805001 500N

$56.03



Out of Stock until approximately 11/29/2024.

Replacement gas spring for the Airax Rayflex 6858853805001 500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858853805001 500N quantity

Add to basket

This gas spring is also known as 588538 500N, 50006858853805001, 6858853805001.00.

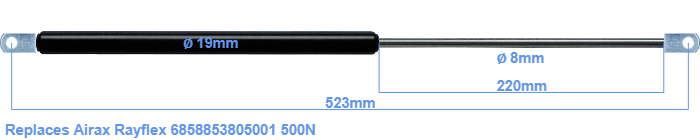

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 220 mm. The total length of this replacement gas spring is 523 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. The force of this replacement gas spring is 500 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
