$56.03



Out of Stock until approximately 12/3/2024.


Replacement gas spring for the Airax Rayflex 6858853801501 150 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


  • View this gas spring in our configurator.
    This gas spring is also known as 588538 150N, 50006858853801501, 6858853801501.00.
    Airax Rayflex 6858853801501
    AR19

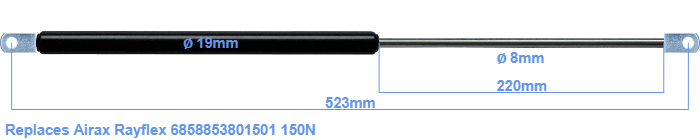

    The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 220 millimeter. In total, the length is 523 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 485 mm. This replacement gas spring has a force of 150 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
