Replacement for Airax Rayflex 6858853801001 100N

$56.03



Out of Stock until approximately 11/29/2024.

Replacement gas spring for the Airax Rayflex 6858853801001 100 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858853801001 100N quantity

Add to basket

This gas spring is also known as 588538 100N, 50006858853801001, 6858853801001.00.

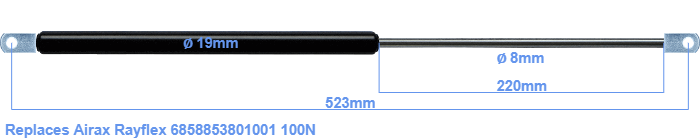

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke is 220 millimeter long. In total, the length is 523 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. This replacement gas spring has a force of 100 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
