Replacement for Airax Rayflex 6858853307001 700N

$36.77



Replacement gas spring for the Airax Rayflex 6858853307001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858853307001 700N quantity

Add to basket

This gas spring is also known as 588533 700N, 50006858853307001, 6858853307001.00.

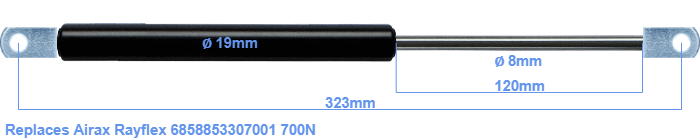

The diameter of the black cylinder of this gas spring is 19 millimeter. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 120 mm. The total length of this gas strut is 323 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 285 mm long (thread to thread). This gas spring (6858853307001) has a force of 700 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
