Replacement for Airax Rayflex 6858853105501 550N

$35.07



Replacement gas spring for the Airax Rayflex 6858853105501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858853105501 550N quantity

Add to basket

This gas spring is also known as 588531 550N, 50006858853105501, 6858853105501.00.

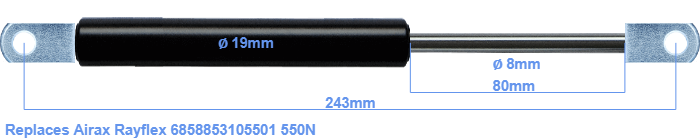

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement is exactly 243 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 205 mm long (thread to thread). The force of this replacement gas spring is 550 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
