Replacement for Airax Rayflex 6858853002001 200N

$32.83



Replacement gas spring for the Airax Rayflex 6858853002001 200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858853002001 200N quantity

Add to basket

This gas spring is also known as 588530 200N, 50006858853002001, 6858853002001.00.

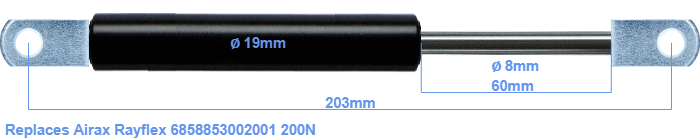

This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The stroke is 60 millimeter long. The total length of this gas strut is 203 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 165 mm long (thread to thread). This replacement gas spring has a force of 200 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
