Replacement for Airax Rayflex 6858848905502 550N

$49.51



Out of Stock until approximately 11/22/2024.

Replacement gas spring for the Airax Rayflex 6858848905502 550 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858848905502 550N quantity

Add to basket

This gas spring is also known as 588489-CRR 550N, 50006858848905502, 6858848905502.00.

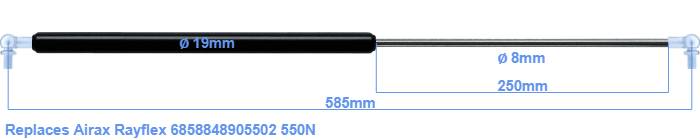

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is 585 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. This replacement gas spring (6858848905502) has a force of 550 Newton (N). This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are close to equal.
