Replacement for Airax Rayflex 6858848904802 480N

$49.51



Out of Stock until approximately 11/22/2024.

Replacement gas spring for the Airax Rayflex 6858848904802 480 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858848904802 480N quantity

Add to basket

This gas spring is also known as 588489-CRR 480N, 50006858848904802, 6858848904802.00.

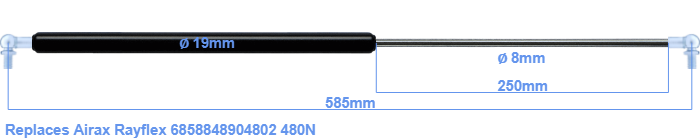

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 250 mm long. In total, the length is 585 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. This gas spring (6858848904802) has a force of 480 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are nearly equal.
