Replacement for Airax Rayflex 6858848904002 400N

$49.51



Out of Stock until approximately 11/22/2024.

Replacement gas spring for the Airax Rayflex 6858848904002 400 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858848904002 400N quantity

Add to basket

This gas spring is also known as 588489-CRR 400N, 50006858848904002, 6858848904002.00.

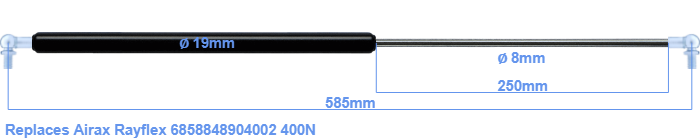

The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is 585 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement is 400 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are close to equal.
