Replacement for Airax Rayflex 6858848902002 200N

$49.51



Out of Stock until approximately 11/22/2024.

Replacement gas spring for the Airax Rayflex 6858848902002 200 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858848902002 200N quantity

Add to basket

This gas spring is also known as 588489-CRR 200N, 50006858848902002, 6858848902002.00.

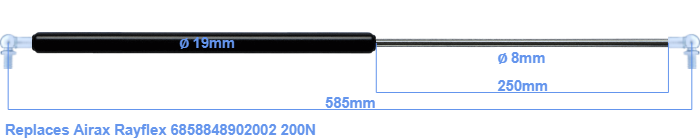

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The rod (the chrome part) is 250 mm long. In total, the length is 585 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 545 millimeter. The force of this replacement is 200 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This replacement gas spring is a HAHN gas spring. The force (200 N) and dimensions are almost entirely identical to the original.
