Replacement for Airax Rayflex 6858848901002 100N

$49.51



Out of Stock until approximately 11/22/2024.

Replacement gas spring for the Airax Rayflex 6858848901002 100 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858848901002 100N quantity

Add to basket

This gas spring is also known as 588489-CRR 100N, 50006858848901002, 6858848901002.00.

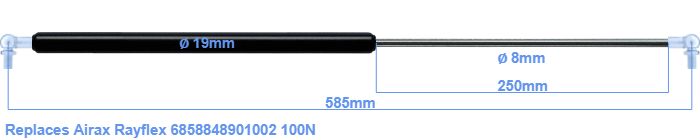

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this gas strut is 585 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement is 100 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (100 N) and dimensions are almost identical to the original.
