Replacement for Airax Rayflex 6858828406002 600N

$61.85



Out of Stock until approximately 12/3/2024.

Replacement gas spring for the Airax Rayflex 6858828406002 600 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858828406002 600N quantity

Add to basket

This gas spring is also known as 588284-CRR 600N, 50006858828406002, 6858828406002.00.

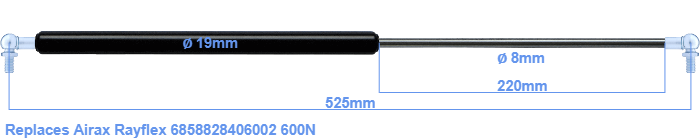

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 220 mm. The total length of this gas strut is 525 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). This replacement gas spring (6858828406002) has a force of 600 Newton (N). Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This is a HAHN gas spring. The force (600 N) and dimensions are nearly identical to the original.
