$61.85



Out of Stock until approximately 12/3/2024.


Replacement gas spring for the Airax Rayflex 6858828403002 300 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.
This gas spring is also known as 588284-CRR 300N, 50006858828403002, 6858828403002.00.
Airax Rayflex 6858828403002
WG20
elbow ball removal

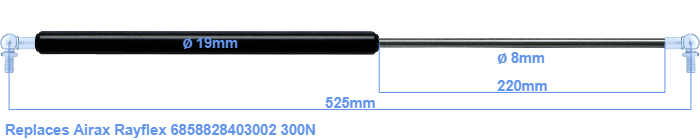

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The stroke is 220 millimeter long. The total length of this gas strut is 525 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). This gas spring (6858828403002) has a force of 300 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
