Replacement for Airax Rayflex 6858828401002 100N

$61.85



Out of Stock until approximately 11/29/2024.

Replacement gas spring for the Airax Rayflex 6858828401002 100 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858828401002 100N quantity

Add to basket

This gas spring is also known as 588284-CRR 100N, 50006858828401002, 6858828401002.00.

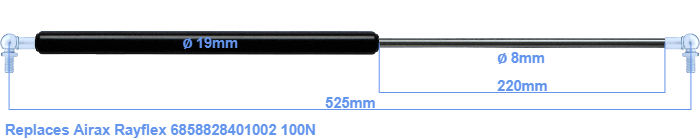

The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 220 mm. The total length of this replacement is exactly 525 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). This gas spring (6858828401002) has a force of 100 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions close to equal.
