Replacement for Airax Rayflex 6858824106502 650N

$46.79



Replacement gas spring for the Airax Rayflex 6858824106502 650 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858824106502 650N quantity

Add to basket

This gas spring is also known as 588241-CRR 650N, 50006858824106502, 6858824106502.00.

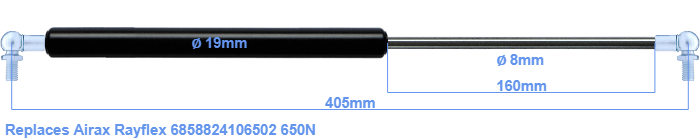

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 160 mm. The total length of this replacement is exactly 405 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 365 mm. The force of this replacement gas spring is 650 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
