Replacement for Airax Rayflex 6858824101502 150N

$46.79



Replacement gas spring for the Airax Rayflex 6858824101502 150 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858824101502 150N quantity

Add to basket

This gas spring is also known as 588241-CRR 150N, 50006858824101502, 6858824101502.00.

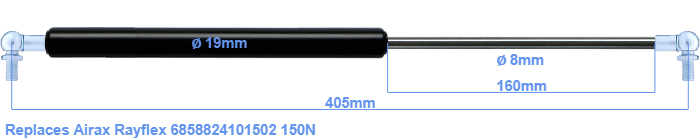

The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 160 mm. The total length of this gas strut is 405 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 365 mm. This replacement gas spring has a force of 150 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are close to equal.
