Replacement for Airax Rayflex 6856355401501 150N

$33.99



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6856355401501 150 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6856355401501 150N quantity

Add to basket

This gas spring is also known as 563554 150N, 50006856355401501, 6856355401501.00.

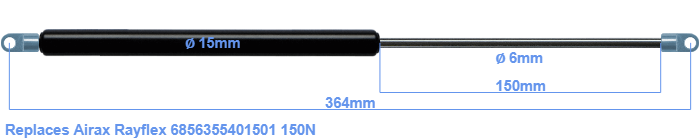

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke of the gas spring is 150 millimeter. The total length of this replacement is exactly 364 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 332 mm. The force of this replacement is 150 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This replacement gas spring is a HAHN gas spring. The force (150 N) and dimensions are nearly identical to the original.
