Replacement for Airax Rayflex 6856355400501 50N

$33.99



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6856355400501 50 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6856355400501 50N quantity

Add to basket

This gas spring is also known as 563554 50N, 50006856355400501, 6856355400501.00.

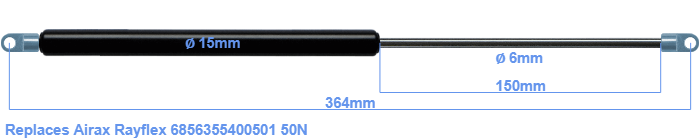

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement is 364 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). This replacement gas spring (6856355400501) has a force of 50 Newton (N). This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions almost equal.
