Replacement for Airax Rayflex 6856353403501 350N

$33.53



Replacement gas spring for the Airax Rayflex 6856353403501 350 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6856353403501 350N quantity

Add to basket

This gas spring is also known as 563534 350N, 50006856353403501, 6856353403501.00.

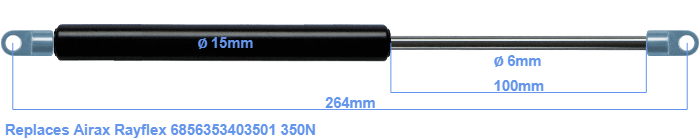

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The chrome part is called the rod. It has a length of 100 mm. The total length of this replacement gas spring is 264 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 232 mm. The force of this replacement gas spring is 350 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
