Replacement for Airax Rayflex 6856352803001 300N

$33.10



Out of Stock until approximately 11/29/2024.

Replacement gas spring for the Airax Rayflex 6856352803001 300 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6856352803001 300N quantity

Add to basket

This gas spring is also known as 563528 300N, 50006856352803001, 6856352803001.00.

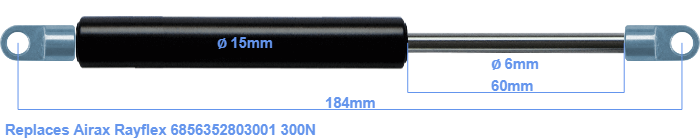

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke is 60 millimeter long. The total length of this replacement gas spring is 184 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). The force of this replacement is 300 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
