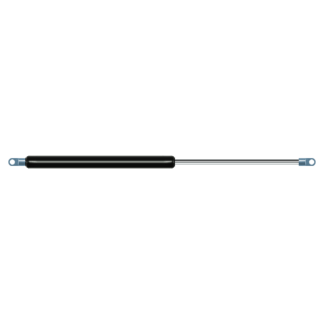

Replacement for Airax Rayflex 6856350601501 150N

$33.99



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6856350601501 150 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6856350601501 150N quantity

Add to basket

This gas spring is also known as 563506 150N, 50006856350601501, 6856350601501.00.

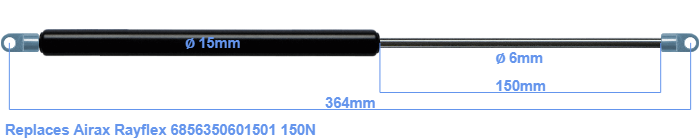

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod is 6 millimeter. The stroke of the gas spring is 150 millimeter. The total length of this replacement is 364 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). This replacement gas spring has a force of 150 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
