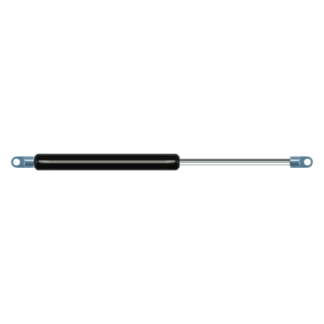

Replacement for Airax Rayflex 6856350401001 100N

$33.53



Replacement gas spring for the Airax Rayflex 6856350401001 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6856350401001 100N quantity

Add to basket

This gas spring is also known as 563504 100N, 50006856350401001, 6856350401001.00.



The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement gas spring is 264 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 232 mm long (thread to thread). The force of this replacement gas spring is 100 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost entirely equal.
