Replacement for Airax Rayflex 6856346002002 200N

$37.25



Out of Stock until approximately 11/29/2024,

Replacement gas spring for the Airax Rayflex 6856346002002 200 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6856346002002 200N quantity

Add to basket

This gas spring is also known as 563460-CRR 200N, 50006856346002002, 6856346002002.00.

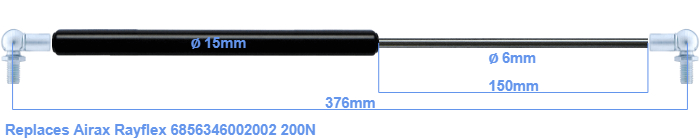

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke is 150 millimeter long. The total length of this replacement is exactly 376 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 332 mm. This gas spring (6856346002002) has a force of 200 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
