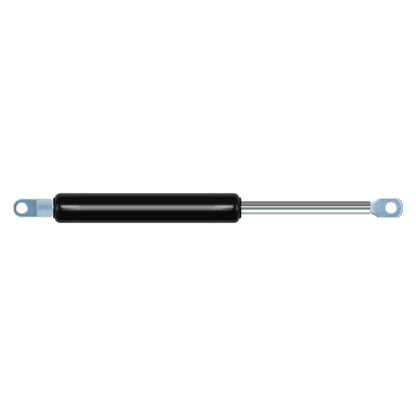

Replacement for Airax Rayflex 6851854507501 750N

$36.29



Replacement gas spring for the Airax Rayflex 6851854507501 750 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851854507501 750N quantity

Add to basket

This gas spring is also known as 518545 750N, 50006851854507501, 6851854507501.00.

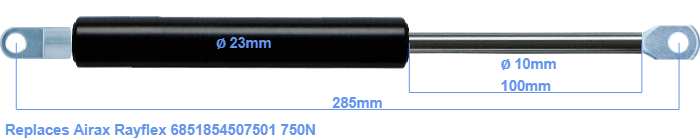

The bore of the house of this replacement gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke of the gas spring is 100 millimeter. In total, the length is 285 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 245 millimeter. The force of this replacement is 750 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This a gas spring with the brand HAHN. Nevertheless, the dimensions and force are almost equal.
