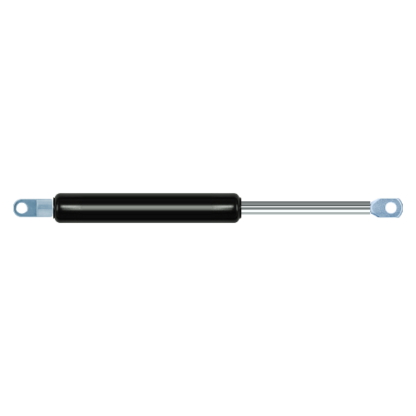

Replacement for Airax Rayflex 6851854506001 600N

$36.29



Replacement gas spring for the Airax Rayflex 6851854506001 600 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851854506001 600N quantity

Add to basket

This gas spring is also known as 518545 600N, 50006851854506001, 6851854506001.00.



The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 100 mm. In total, the length is 285 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 245 mm. This gas spring (6851854506001) has a force of 600 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
