Replacement for Airax Rayflex 6851255407501 750N

$48.80



Out of Stock until approximately 12/27/2024,

Replacement gas spring for the Airax Rayflex 6851255407501 750 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255407501 750N quantity

Add to basket

This gas spring is also known as 512554 750N, 50006851255407501, 6851255407501.00.

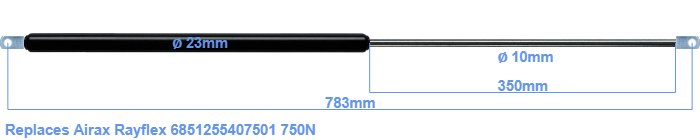

The bore of the house of this replacement gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke (the retracting part) has a length of 350 mm. The total length of this replacement is exactly 783 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 745 mm. This replacement gas spring (6851255407501) has a force of 750 Newton (N). Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The force (750 N) and dimensions are almost identical to the original.
