Replacement for Airax Rayflex 6851255407001 700N

$48.80



Out of Stock until approximately 12/27/2024,

Replacement gas spring for the Airax Rayflex 6851255407001 700 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255407001 700N quantity

Add to basket

This gas spring is also known as 512554 700N, 50006851255407001, 6851255407001.00.

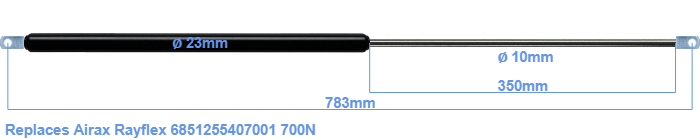

This gas spring has a cylinder diameter of 23 mm. The cross section of the rod is 10 mm. The stroke is 350 millimeter long. The total length of this replacement is exactly 783 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 745 millimeter. This gas spring (6851255407001) has a force of 700 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
