Replacement for Airax Rayflex 6851255403001 300N

$48.80



Out of Stock until approximately 12/27/2024,

Replacement gas spring for the Airax Rayflex 6851255403001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255403001 300N quantity

Add to basket

This gas spring is also known as 512554 300N, 50006851255403001, 6851255403001.00.

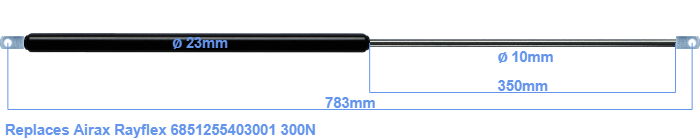

The diameter of the black cylinder of this gas spring is 23 millimeter. The cross section of the rod is 10 mm. The stroke is 350 millimeter long. The total length of this replacement is exactly 783 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 745 mm long (thread to thread). This replacement gas spring has a force of 300 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the force and dimensions almost equal.
